Azure Pipelines for Power Automate Flows Part 2: Service Principals

A blog post by Robert Pröll


Posted: 01.2021 | Category: ALM | Author: Robert Pröll Tags: DEPLOYMENTS CI/CD DEVOPS ALM POWER AUTOMATE FLOWS DYNAMICS 365

Robert Pröll | .NET Software Architect

Intro

This part 2 of a previous blog post, see: Azure Pipelines for Power Automate Flows

We always recommend application users (See: Create an D365 Application User via Script) for deployment tasks. There are a few things need to be done to make this work for Flows.

The provided code is just a basic proof of concept (POC). In a real-world scenario, it is more complicated as many error messages and side effects are misleading, and these problems need to be detected quickly during a failed production deployment.

We basically use the same approach in our products (KDDM Release Q2/2020) and can confirm that it is stable. However, for enterprise environments, a number of additional tasks be carried out. If you have direct access to all systems (incl. AAD), our POC should be a good start.

General Recommendations / Best Practice:

Each action is executed in a specific user context.  It is important to understand the difference between the owner and the “execution user”.  The example shows a connection which is executed as “admin” – a technical user.


It's also possible to use application user instead of technical service accounts but this a little bit more tricky.

It's also possible to use application user instead of technical service accounts but this a little bit more tricky.

This is what i usually recommend to customers:

Personal Account (e.g. alans@CRM572864.OnMicrosoft.com):
Not recommended, there are many reasons:

  • Many records are “modified by” a real person
  • External consultants may leave the project

Technical Service Account (e.g. admin@CRM572864.onmicrosoft.com):

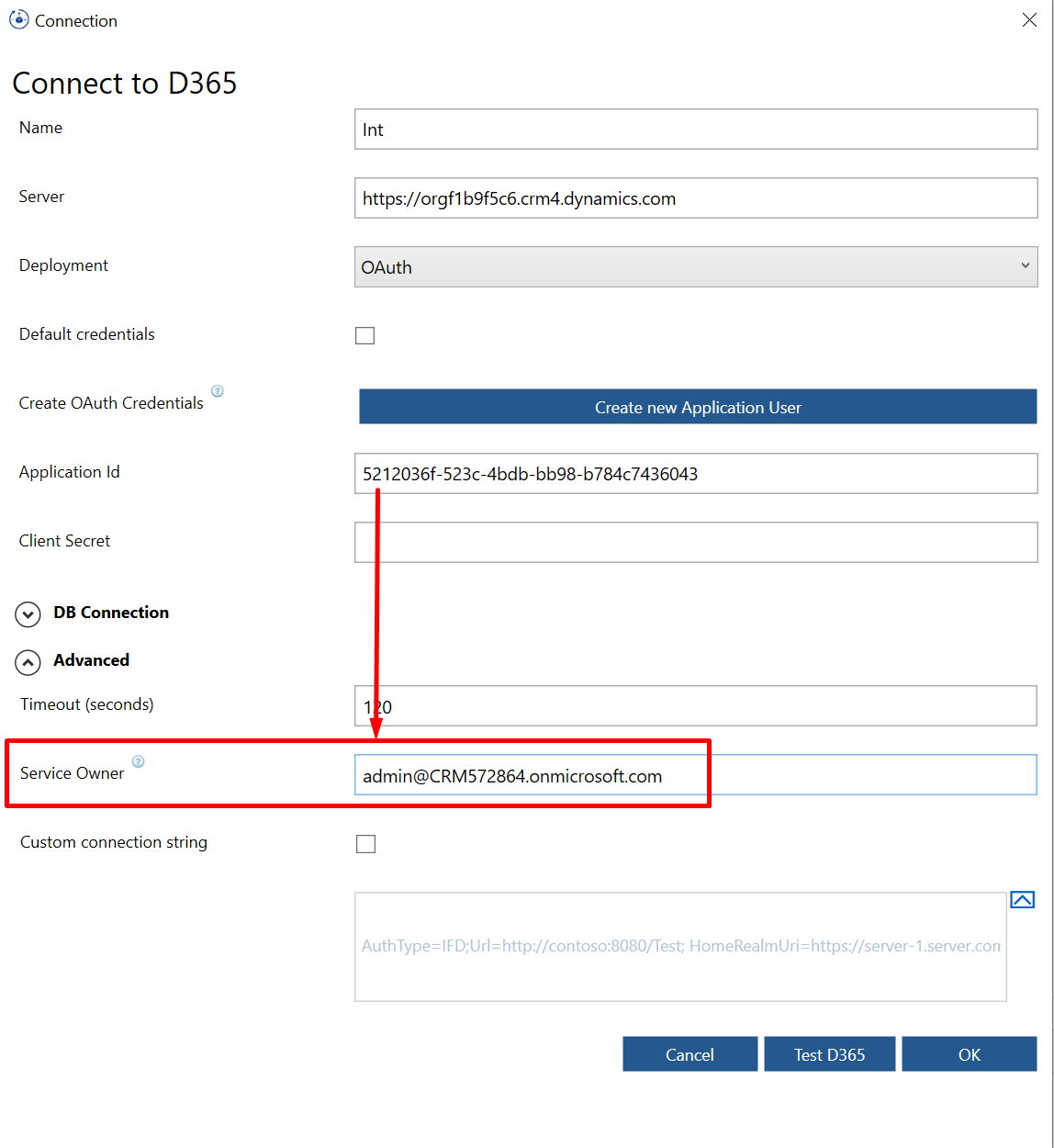

  • Required as “service owner”
  • Used to active flows
  • Recommended context user for connections

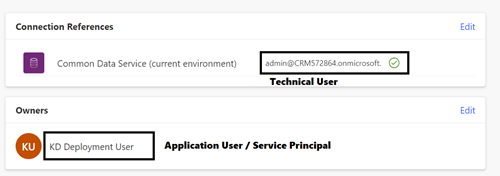

 Application user (e.g. f1bdf92d-c856-4a1a-9645-3c020142163f):

  • Owner of the flow
  • Recommended for deployments

Troubleshooting


Avoid using personal accounts to create connections

Avoid using personal accounts to create connections

ConnectionAuthorizationFailed:

The caller with object id 'f04bf86a-aacd-4400-9ee9-b75e0d983ae2' does not have the minimum required permission to perform the requested operation on connection '9759435c8ff24e6daf57eb890ad9db61' under API 'shared_commondataserviceforapps'."}} and request url https://api.powerapps.com/providers/Microsoft.PowerApps/scopes/service/apis/..

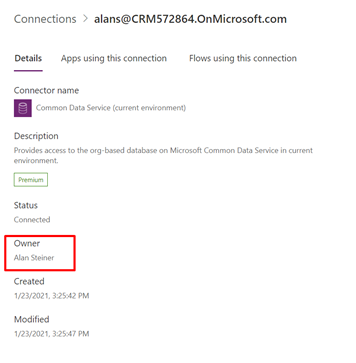

Cause: The used connection uses a different account:

If try to update the connection-ref. with a technical account to a connection owned by another account, you'll get the mentioned error.

Solution: Login as technical user and create the necessary connections.


Use impersonation to active (set state) of imported flows.

Use impersonation to active (set state) of imported flows.

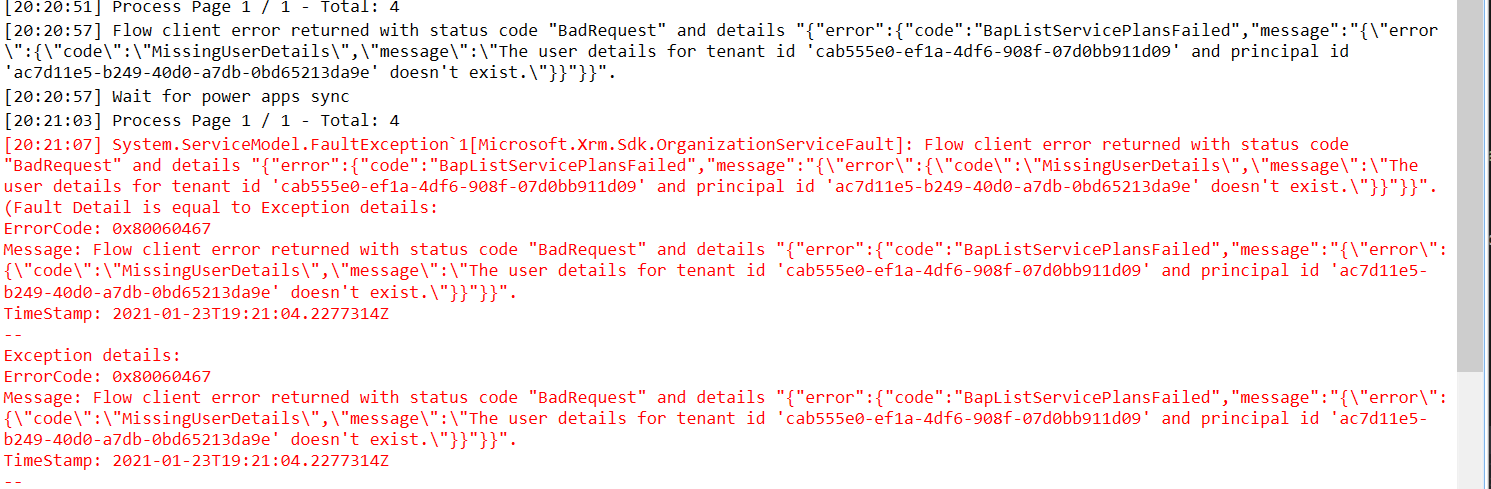

BapListServicePlansFailed / MissingUserDetails

The user details for tenant id 'cab555e0-ef1a-4df6-908f-07d0bb911d09' and principal id 'ac7d11e5-b249-40d0-a7db-0bd65213da9e' does not exist.

Cause: You cannot active a flow as service principal (application user).

Solution: Impersonation: Just set the CallerId to a technical service account.
